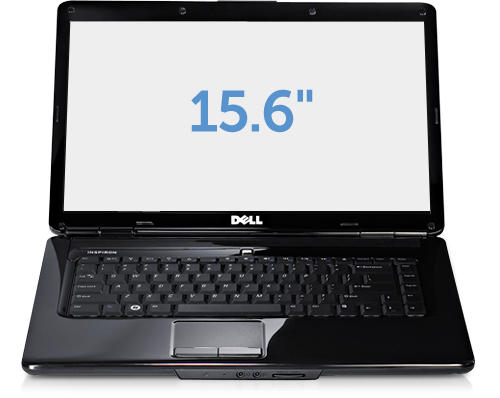

dell inspiron 1545 specs

Processor

Types:
Intel®Celeron®
Intel Celeron Dual-Core
Intel Core™2 Duo
Intel Pentium®Dual-Core

L2 cache: 1 MB, 2 MB, 3 MB, or 6 MB percore depending on model
External: 667/800/1066 MHz

Express Cardcontroller: Intel ICH9M
Express Card connector: one ExpressCard slot (34mm)
Cards supported: ExpressCard/34 (34 mm) 1.5 V and 3.3 V
Express Card connector size: 26 pins
Connectors: two internally-accessible SO-DIMM sockets
Capacities: 512 MB, 1 GB, 2 GB,and 4 GB
Memory type: 800 MHz DDR2 SO-DIMM
Possible memory configurations: 1GB, 1.5GB, 2GB,3GB, 4GB, 6 GB, and 8GB

NOTE: For instructions on upgrading yourmemory, see the Service Manual on theDell Support website at support.dell.com.

NOTE: To take advantage of the dualchannel bandwidth capability, you mustpopulate both memory slots with cardsof the same size.


Computer information

System Chipset: Mobile Intel Express Cantiga GM45 (UMA), PM45 (Discrete)
Data bus width: 64 bits
DRAM bus width: dual channel (2) 64-bit buses
Processor address bus width: 36 bits
Flash EPROM: 2 MB

Communications

Network adapter: 10/100 Ethernet LAN on system board
Wireless: internal WLAN Mini-Card Bluetooth®
wireless: internal WLANMini-CardBluetooth®wirelesstechnology

Video

Video type: integrated on system board
LCD interface: Low Voltage Differential Signaling (LVDS)
Discrete: Video controller ATI Mobility Radeon HD 4330
Video memory: GDDR3 256 MB
UMA:
Video controller GMA X4500HD
Video memory: dynamic based on system  memory capacity

Camera (optional)

Pixel: 1.3 megapixel
Video resolution: 640 x 480 at 30 fps(maximum)
Diagonal viewing angle: 66°

Audio
Audio type: 2 channel High Definition Audio
Audio controller: IDT 92HD71
Internal Interface Intel High Definition Audio
External Interface microphone-in: connector, stereo headphones/speakers connector
Speaker:two 4-ohm speakers

Audio:

Internal speaker: 1 Watt per channel into
amplifier: 4 ohms
Volume controls: program menus, media control buttons

Connectors

Network adapter: RJ45 connector
USB: three 4-pin USB 2.0-compliant connectors
Video: 15-hole connector
