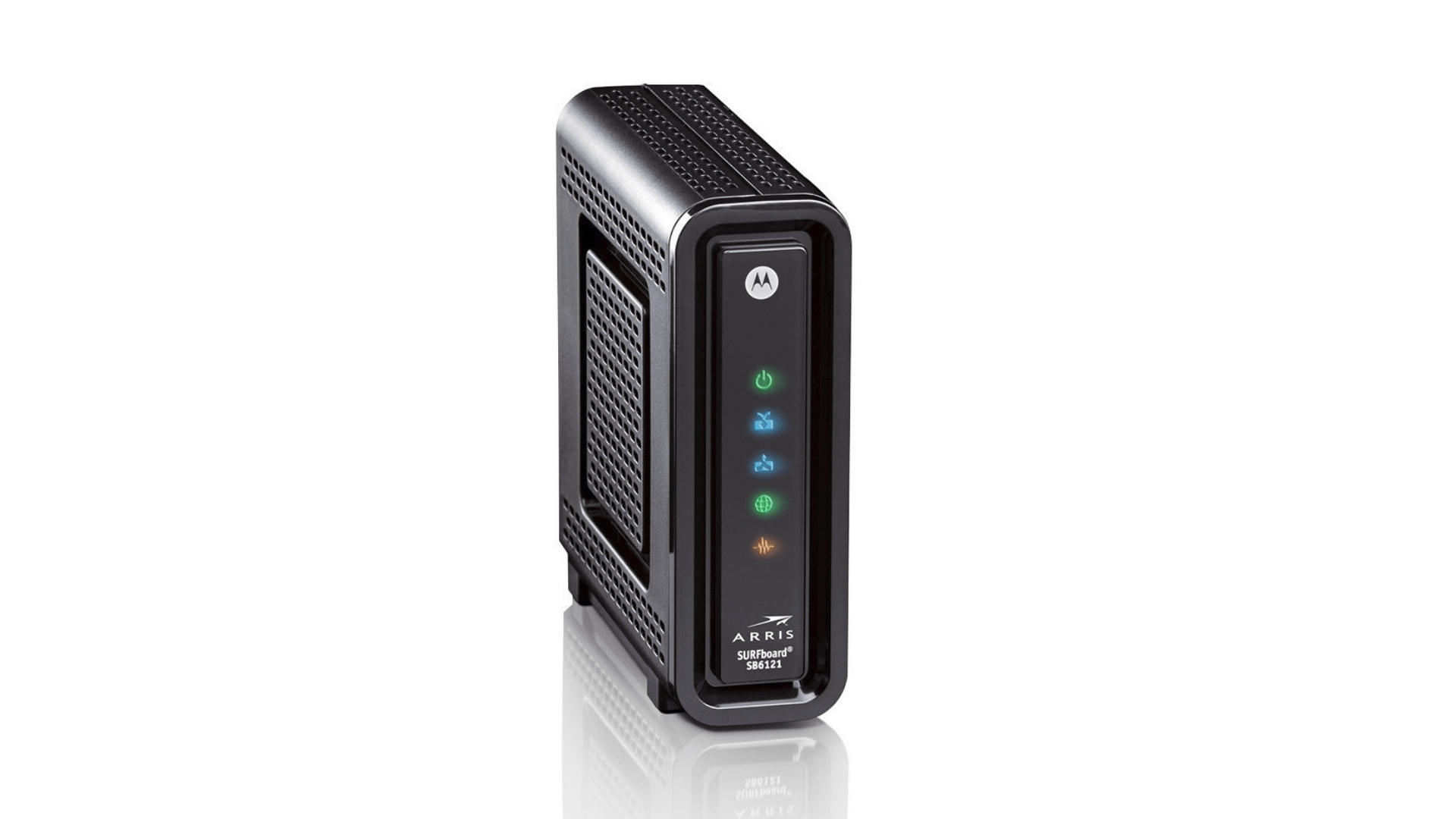

ARRIS SurfBoard SB6121 Specs

Specifications

CPE Network Interface 10/100/1000Base-T Ethernet (RJ-45)
Data Protocol TCP/IP
Dimensions 5.24 in H x 5.24 in W x 1.65 in D
 (133 mm x 133 mm x 42 mm)
Power 9W (nominal)
Input Power
 North America 105 to 125 VAC, 60 Hz
 Outside North America 100 to 240 VAC, 50 to 60 Hz
Regulatory RoHS compliant, ENERGY STAR V2 , COC V3, Compliant per the
 “Code of Conduct on Energy Consumption of Broadband
 Equipment”, CMM, MEPS

Environmental

Storage Temperature –22 °F to 158 °F (–30 °C to 70 °C)
Operating Humidity 5 to 95% R.H. (non-condensing)

Downstream

Modulation 64 or 256 QAM
Capture Bandwidth 100 MHz (edge to edge)
Maximum Theoretical Data Rate**
DOCSIS 171.537 Mbps (4 channels) / 42.884 (single channel)
 @ 256 QAM at 5.36 Msym/s
EuroDOCSIS 222.464 Mbps (4 channels) / 55.616 (single channel)
 @ 256 QAM at 6.952 Msym/s
Bandwidth
DOCSIS ≤ 24 MHz
EuroDOCSIS ≤ 32 MHz
Symbol Rate
DOCSIS 64 QAM 5.057 Msym/s; 256 QAM 5.361 Msym/s
EuroDOCSIS 64 QAM 6.952 Msym/s; 256 QAM 6.952 Msym/s
Operating Level Range –15 to 15 dBmV
Bonded Channel RF
Level Tolerance 10dBmV
Input Impedance 75 Ω (nominal)
Frequency Range DOCSIS and EuroDOCSIS 108 to 1002 MHz (edge to edge),
 Optional 91 to 1002 MHz (edge to edge)
Frequency Plan
EuroDOCSIS Annex A
DOCSIS Annex B
J-DOCSIS Annex B, modified for Japan Frequencies
Security DOCSIS 3.0 Security (BPI+, EAE, SSD)
Network Management SNMP v2 & v3
Provisioning Supports IP addressing using IPv4 and/or IPv6 (dual stack)


Upstream

Modulation QPSK and 8, 16, 32, 64, 128 QAM
Maximum Channel Rate**
DOCSIS 131.072 Mbps (4 channels) / 32.768 Mbps (single channel):
 @ 128 QAM at 6.4 MHz
EuroDOCSIS 131.072 Mbps (4 channels) / 32.768 Mbps (single channel):
 @ 128 QAM at 6.4 MHz
Channel Width 200 kHz, 400 kHz, 800 kHz, 1.6 MHz,
 3.2 MHz, 6.4 MHz
Symbol Rates 160, 320, 640, 1280, 2560, 5120 ksym/s
Operating Level Range Level range per channel (Multiple Transmit Channel mode
 disabled, or only Multiple Transmit Channel mode enabled
with one channel in the TCS)
DOCSIS/EuroDOCSIS
 TDMA
 Pmin to +57 dBmV (32 QAM, 64 QAM)
Pmin to +58 dBmV (8 QAM, 16 QAM)
Pmin to +61 dBmV (QPSK)
 S-CDMA
 Pmin to +56 dBmV (all modulations), where:
Pmin = +17 dBmV, 1280 kHz modulation rate
Pmin = +20 dBmV, 2560 kHz modulation rate
Pmin = +23 dBmV, 5120 kHz modulation rate
Level range per channel (two channels in the TCS)
 TDMA
 Pmin to +54 dBmV (32 QAM, 64 QAM)
Pmin to +55 dBmV (8 QAM, 16 QAM)
Pmin to +58 dBmV (QPSK)
 S-CDMA
 Pmin to +53 dBmV (all modulations), where:
Pmin = +17 dBmV, 1280 kHz modulation rate
Pmin = +20 dBmV, 2560 kHz modulation rate
Pmin = +23 dBmV, 5120 kHz modulation rate
Level range per channel (three or four channels in the TCS)
 TDMA
 Pmin to +51 dBmV (32 QAM, 64 QAM)
Pmin to +52 dBmV (8 QAM, 16 QAM)
Pmin to +55 dBmV (QPSK)
 S-CDMA
 Pmin to +53 dBmV (all modulations), where:
Pmin = +17 dBmV, 1280 kHz modulation rate
Pmin = +20 dBmV, 2560 kHz modulation rate
Pmin = +23 dBmV, 5120 kHz modulation rate
Output Impedance 75 Ω (nominal)
Frequency Range DOCSIS 5-42 MHz (edge to edge), EuroDOCSIS and
 optional DOCSIS 5 to 65 MHz (edge to edge)
Compatibility PC: 90496, Pentium, or later; Windows Vista™, 2000, XP or 7
 or Linux® with Ethernet connection (older versions of
 Windows, although not specifically supported, will work
 with this cable modem)
Macintosh: Power PC or later; OS 9 or higher, Ethernet
 connection
UNIX: Ethernet connection
 Home Networking: Ethernet router or wireless access point

Strengthen your broadband leadership — Count on Motorola’s SURFboard
DOCSIS® / EuroDOCSIS 3.0 CPE to help you deliver innovative, ultra broadband


data services to your premium customers.
High Value and Increased Data Rates
Motorola’s easy-to-use SB6121 SURFboard DOCSIS
3.0 Cable Modem unlocks the potential of offering
innovative high-bandwidth data and multimedia
services to customers.
Utilizing the power of DOCSIS 3.0, the SB6121
enables channel bonding of up to four downstream
channels and four upstream channels, which allows
an operator to offer their customers advanced
multimedia services with data rates of well over 100
Mbps in each direction. The SB6121’s higher-speed
services enable operators to:
•     Protect their installed base of high-speed data
customers
•     Deliver high-bandwidth, multimedia services
•     Deliver competitive, high-capacity commercial
services to their business customers
Economic and Flexible
The Motorola SB6121 SURFboard DOCSIS 3.0 Cable
Modem provides operators with an economic option
for providing Ultra-Broadband services, with four
times the current maximum user data throughput
approximating 160 Mbps in DOCSIS mode and 195
Mbps in EuroDOCSIS mode*, without the need for
hybrid fiber coax (HFC) plant upgrade. Maximizing
an operator’s current infrastructure investment,
the SB6121 can be deployed without service
interruption.

Backwards compatible to DOCSIS 1.0, 1.1 and 2.0,
the SB6121 also supports both IPv4 and IPv6,
Advanced Encryption Services, and all other DOCSIS
3.0 standards.
As part of Motorola DOCSIS 3.0 Ultra-Broadband
family of products, the SB6121 includes an enhanced
tuner that supports up to a 1 GHz downstream input,
which allows operators to increase the frequency
spectrum for deployment of new high-value services,
such as bandwidth on-demand, commercial services,
interactive gaming, and IPTV, to their customers.
The SB6121 features a 10/100/1000Base-T Ethernet
(RJ-45) port, as well as intuitive, easy-to-read
front-panel operational status LEDs. Operators
can optionally activate dual colored LEDs for their
customer to have visual verification of bonded
channels and GigE link use.
With Motorola’s cable modems, high-speed Internet
access is always at your fingertips – always on
and always connected. The SB6121 is the ideal
competitive solution for the high-end residential user,
the small home office owner, and the medium to
large business enterprise.
